Dongguan Zhiding Electronics Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 5mm round green leds energy saving in China, also supports customized service. If you're going to wholesale advanced 5mm round green leds energy saving made in China, welcome to get quotation from our factory. Also, 2 years warranty is available.

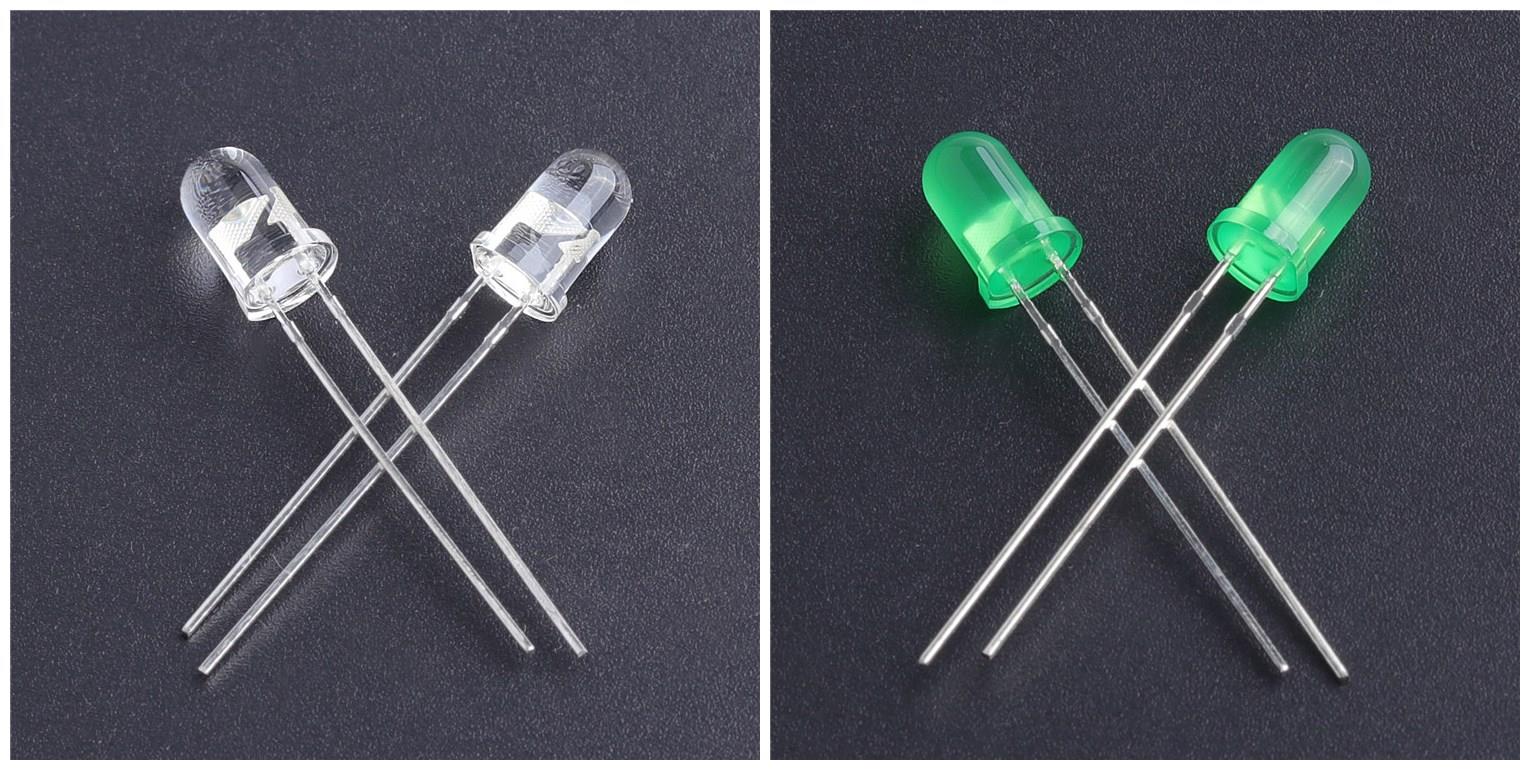

5mm round green leds energy saving
Green 5mm through hole LED. Features 525nm wavelength, 8,000mcd, and 30-60 degree viewing angle. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Here we have a 5mm green LED, perfect for illuminating your crystal or adding that extra flare to your saber build.
| Brand | ALLIGHT |
|---|---|
| Part Number | AL-L051SUGC |
| LED Dimensions | 5.0X8.6mm |
| Style | Classic |
| Color | Green 520-530nm / MPQ 1000pcs |
| Shape | 5mm Round Head |
| Voltage | 3 volts |
| Specific Uses | General purpose |
| Fixture Features | Instant On |
| Batteries Included? | No |
| Batteries Required? | No |
| Type of bulb | LED |
| Wattage | 0.06 watts |
| Super-Green 5mm LED (GaInN/GaN) | ||||||
| absolute maximum ratings: (TA=25°C) | ||||||
| PARAMETER | SYMBOL | Rating | UNIT | |||
| Power Dissipation | PD | mW | ||||
| Continuous Forward Current | IF | 20 | mA | |||
| Peak Forward Current (1/10th duty cycle, 0.1ms pulse width) | IFM | 100 | mA | |||
| Reverse Voltage | VR | 5 | V | |||
| Operating Temperature | TA | -40~+85 | °C | |||
| Storage Temperature | Tstg | -40~+100 | °C | |||
| Reverse Current (VR=5V) | IR | µa | ||||
| Lead Soldering Temperature (3mm from body) 260C (for 3 seconds) | ||||||
| Optoelectric Characteristics | ||||||
| PARAMETER | SYMBOL | MAX | TYP | UNIT | TEST | |
| View Angle of Half Power | 2ø1/2 | -- | 30 | Degree | -- | |
| Forward Voltage | VF | 3.5 | 3.0 | V | IF=20mA | |
| Peak Emission Wavelength | ÿP | -- | 525 | nm | IF=20mA | |
| Luminous Intensity | IV | -- | 6000 | mcd | IF=20mA | |
ZHIIDNG Provide High Quality 5mm round green leds energy saving, And Offer Two-Year Warranty.
Ultra Bright Lighting, Low Energy Consumption And Low Heat.
Industrial Standard Size, 25.4mm standard PIN length for widely used and convenient for cperation.
Soldering Condition (Manual Soldering): Less Than 3 Seconds With 482°F-527°F
Soldering Condition (Reflow Soldering): Less Than 5 Seconds With 500°F
Storage Conditions: Drying Preservation And Keep Away From Fire Or High Temperature.
Water clear or white diffused of color diffused lens, depending on your choice.
Dongguan Zhiding Electronics Technology Co., Ltd is a professional LED manufacturer in Dongguan, Guangdong, China. We have all series leds: SMD led, Dip led, High power led, UV led, IR led and so on. We also have our own processing factory that can provide PCB custom processing services, such as leds module. Welcome to your inquiry!
