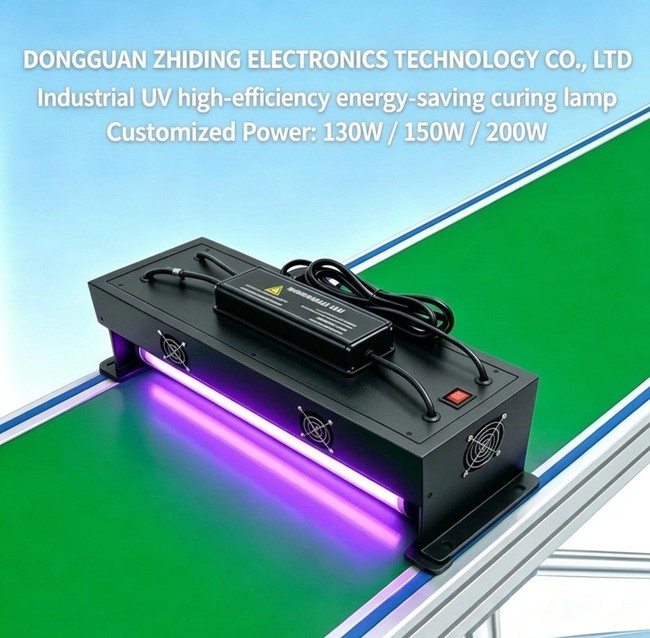

P48U36GL130 – 130W Industrial UV LED Curing Lamp for Adhesive & Ink Drying
ZHIDINGLED High-efficiency 130W UV LED curing lamp designed for fast UV adhesive curing, UV ink drying, and conformal coating. Compact industrial UV light with 365nm single-wavelength LEDs, ideal for electronics assembly, PCB manufacturing, optical bonding, and precision part curing.

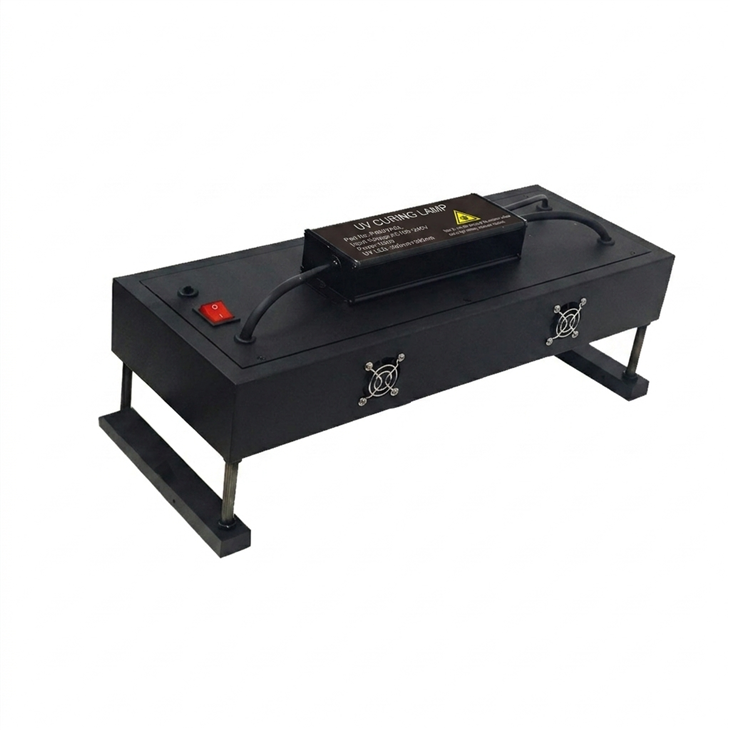

The P48U36GL130 is a professional-grade industrial UV curing lamp built for manufacturers that require consistent, energy-efficient, and high-speed UV adhesive curing. Equipped with 96 pcs high-power 365nm UV LEDs, this unit delivers stable ultraviolet output optimized for deep-cure UV glues, UV inks, and photosensitive coatings used in electronics production, medical device assembly, and automotive component bonding.
Compared to conventional mercury vapor UV lamps, the P48U36GL130 LED UV curing system reduces energy consumption by more than 60%, while eliminating warm-up time and frequent lamp replacement. With a compact 485*86*195mm design, it integrates easily into inline UV curing stations, conveyor systems, benchtop workstations, and robotic dispensing lines.
Under standard test conditions using UV9299 adhesive (≤0.05 cm³), the system achieves complete photopolymerization in approximately 10 seconds at 100 mm working distance, significantly improving production throughput and cycle efficiency.
|
Item |
Characteristics / Parameters |
Remarks |
|

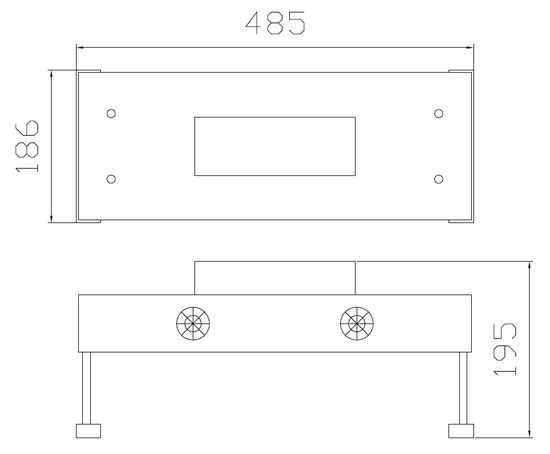

Dimensions |
485 * 186 * 195 mm |
Packing Size: 500 * 200 * 241 mm |
|
Weight |
4.61 kg / 5.21 kg |
Net Weight / Gross Weight |
|
Input Voltage |
AC 100-240V |
Universal Input |
|
Power |
130W |
Standby Power: 3.5W |
|
UV LED Wavelength |
365 nm |
Single Wavelength |
|
UV LED Quantity |
96 PCS |
High Power LED Chips |
|
Irradiance (Euv/Eye) |
300 uW/cm² |
Distance 100mm, measured by UV radiometer |
|
Curing Time |
10S (<0.05 cm³, UV Adhesive UV9299) |
Time for reference only, varies by material and volume |
|
Max. Curing Object Height |
< 50 mm |
Customization available for taller objects |
|
Min. Curing Object Height |
10 mm |
Products thinner than 10mm require a spacer |
|
Curing Materials |
UV Adhesives, UV Inks |
Compatible with most UV-curable materials |
|
Power Cord Connector |
Chinese Standard Plug |
Power Cord Length: 1.8 m |
|
Installation Method |
Horizontal placement |
On conveyor belt or workbench |
Compatible with workpiece thickness from 10 mm to 50 mm, this industrial UV curing light is well-suited for applications such as:
• PCB UV curing & solder mask drying
• Precision electronics adhesive bonding
• Optical lens and glass component curing
• Small-scale UV inkjet and screen-printing curing
For higher intensity requirements or larger curing areas, explore our P48UVGL150 (150W) and P48UVGL200 (200W) models
ZHIDINGLED advantages:
1. Fast UV adhesive curing – Reduce cycle times and increase output
2. Energy-saving UV LED technology – Lower operating costs vs mercury lamps
3. Stable 365nm UV output – Consistent curing quality for sensitive components
4. Compact & easy to install – Fits existing production lines without modification
5. Global safety certifications – Reliable performance in international factories
FAQs for P48U36GL130 (130W UV Curing Lamp):
Q1: What is the difference between 365nm and 395nm UV wavelength, and why choose 365nm for this model?
A: 365nm UV light has higher energy and stronger penetration, making it ideal for deep curing thick UV adhesives, conformal coatings, and opaque materials. 395nm is better for surface curing and UV inks. This 130W model uses pure 365nm to ensure strong bonding strength for electronics and structural parts.
Q2: Can this UV lamp replace my old mercury vapor lamp?
A: Yes. The P48U36GL130 is designed as a direct energy-saving replacement. It consumes only 130W while delivering equivalent or higher irradiance than traditional 300W-400W mercury lamps, reducing your electricity costs by over 60% without requiring major changes to your production line layout.
Q3: Is this UV curing lamp compatible with my automation system?
A: Absolutely. It supports Standard RS485 Communication Protocol and external signal triggering. You can easily integrate it into your PLC, robotic arms, or conveyor systems for automated start/stop control.
Q4: What safety certifications does this product have for export?
A: We prioritize industrial safety. This model comes with a certified driver and holds CE, UL, 3C, and UKCA certifications. It meets international standards for electrical safety and electromagnetic compatibility, ensuring smooth customs clearance worldwide.
Q5: Do you offer sample testing before bulk purchase?
A: Yes. We understand that curing effects vary by material. We offer free sample testing services (you only need to cover shipping costs). Send us your adhesive or samples, and we will test them and send you the cured results and recommended parameters.
Whether you need a standard unit or a customized UV curing solution, our technical team is here to help. Contact us today to discuss your application requirements, request a quote, or arrange a sample test to verify the curing effect on your specific materials.
