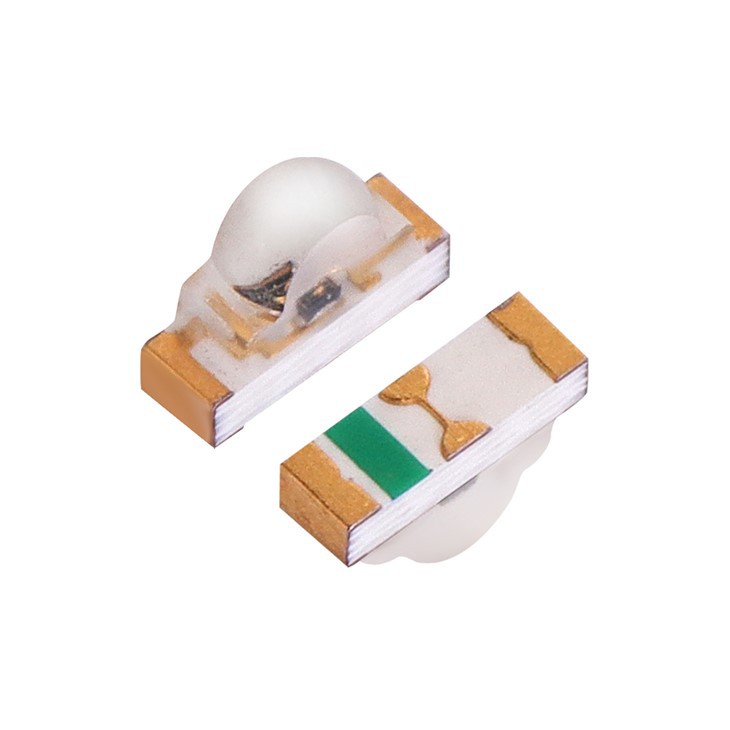

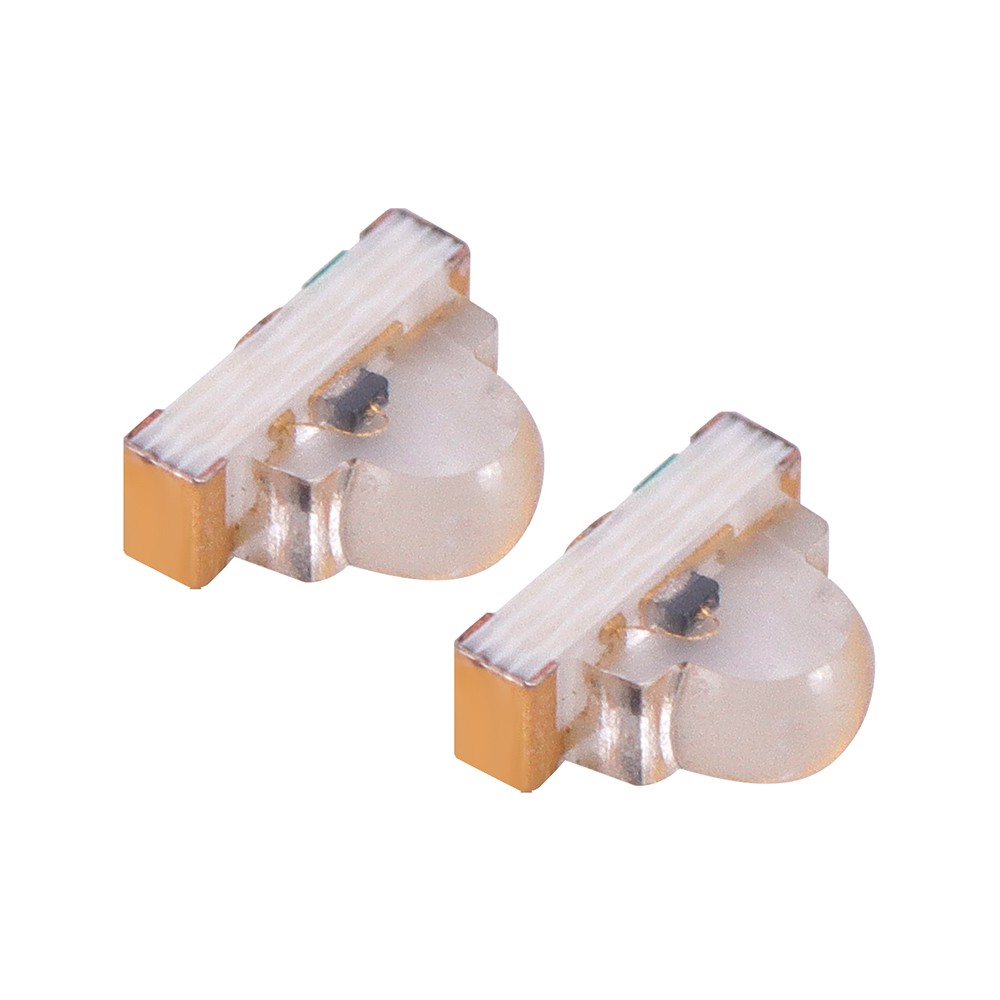

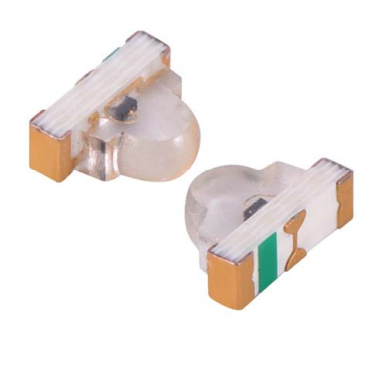

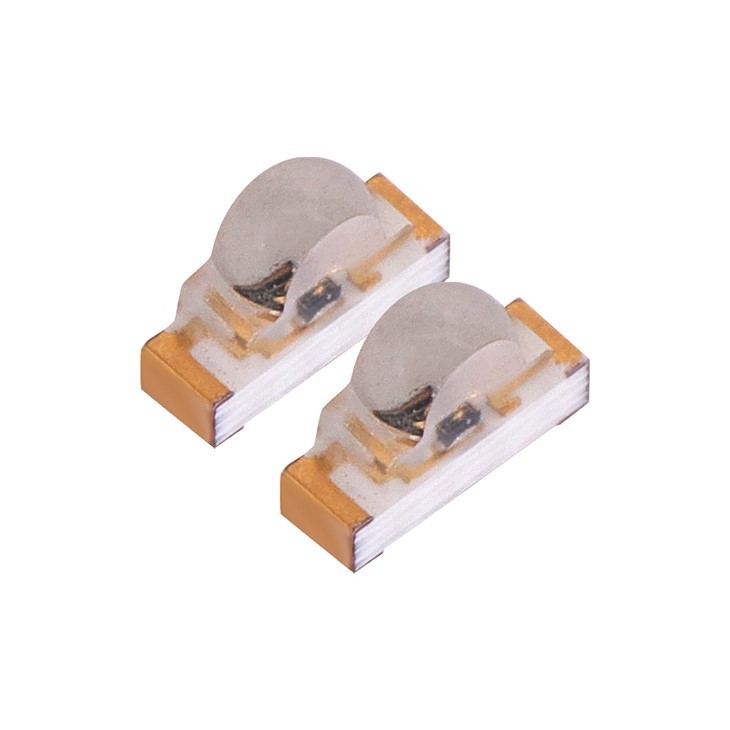

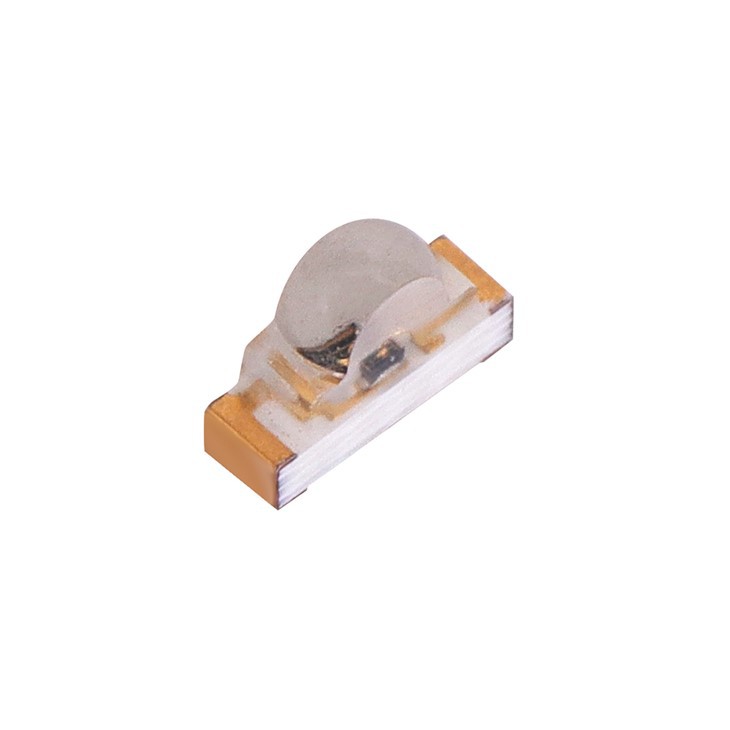

0802 Side View 940nm SMD IR LED
Number Part：AL-S0802IRC-VI-4DP9
Our brand-new 0802 Side View SMD IR LED 940nm infrared emitter is a miniature surface-mount infrared transmitting diode designed for compact optical sensing hardware. Adopting exclusive side-view packaging structure, this 940nm SMD infrared transmitter features a 40° small emission angle, transparent water clear lens and ultra-small 2.10×0.60mm dimension, perfectly filling the market demand for narrow-angle mini infrared light sources.
This infrared emitter diode operates under standard 20mA driving current, with forward voltage ranging 1.1V–1.5V and radiant intensity of 10–16mW/sr. Compared with conventional side-view IR components, its core advantages lie in stable luminous performance and ultra-low light decay, which effectively avoids brightness drop after long-hour operation and greatly extends the service life of finished sensing products. It fully supports automated SMT patch welding, suitable for large-scale mass production of electronic modules.
core specifications and features
Packaging: 0802 side view SMD type
Wavelength: 940nm infrared
Emission Angle: 40 degree small angle
Lens: Water transparent lens
Stable light output, minimal light decay
Tiny footprint for compact device design
Compatible with automatic SMT assembly
Main Applications
This side-emitting 0802 infrared LED acts as the main light source for a full range of photoelectric sensing devices. Manufacturers commonly fit it into photoelectric detectors, proximity switches, gesture recognition boards, tiny IR remote controls and industrial optoelectronic switches.
Its tight 40-degree beam angle outputs precisely aimed infrared rays. For brands designing thin, compact optical sensing gadgets, this infrared part stands out as their top pick.

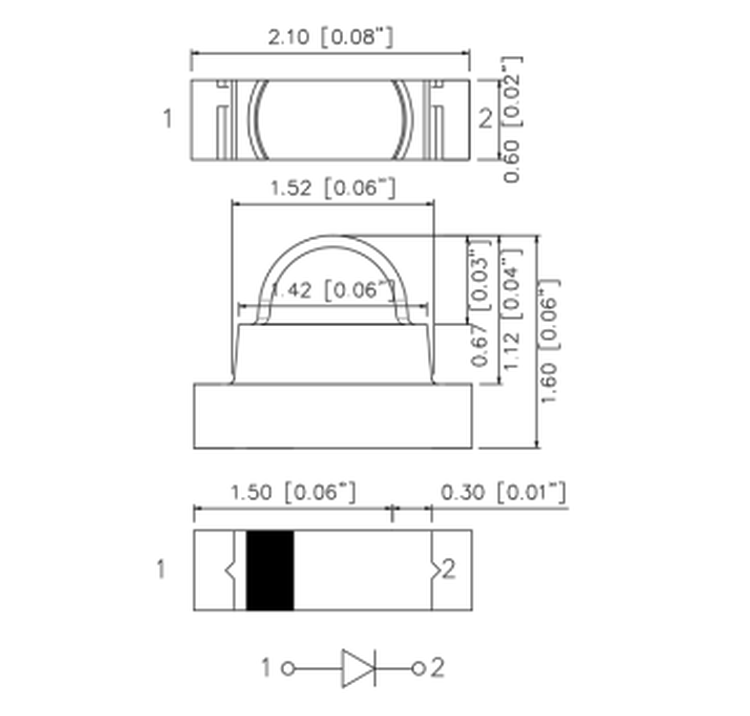

Product Size Demension
