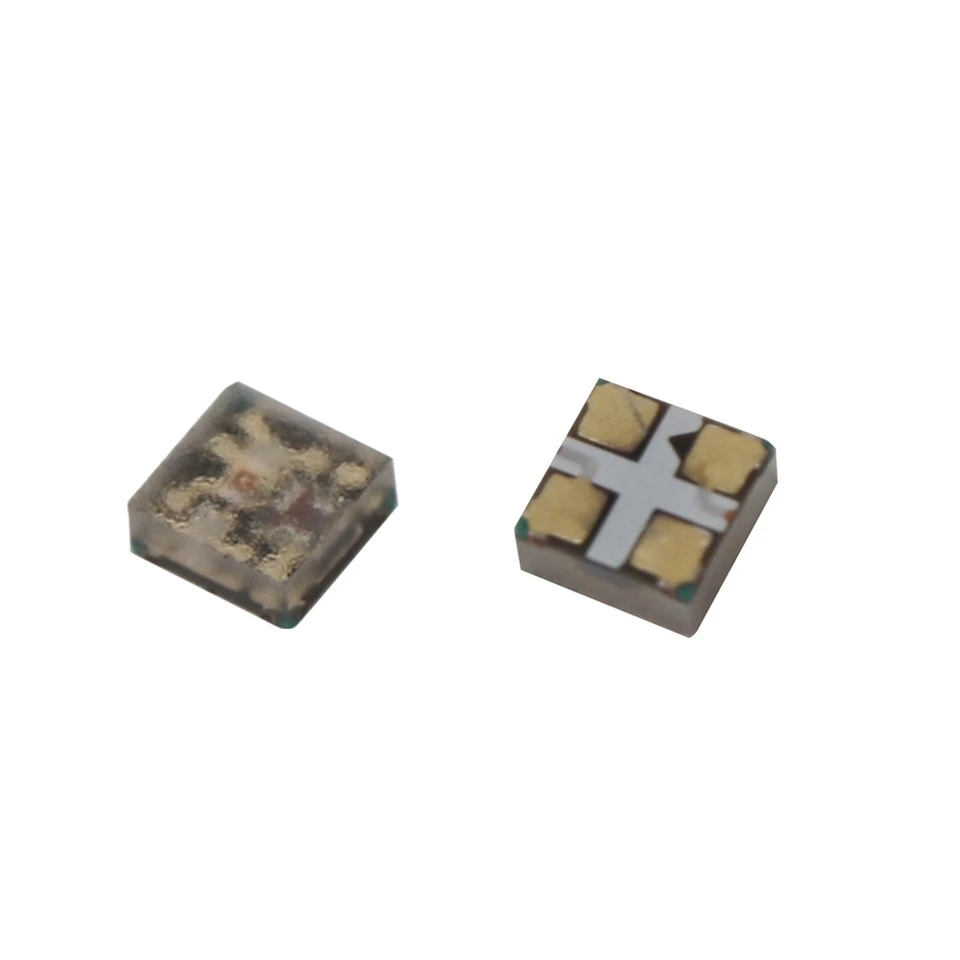

SMD 0605 Addressable RGB LED With Built-in IC

Dongguan Zhiding Electronics Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of smd 0605 addressable rgb led with built-in ic in China, also supports customized service. If you're going to wholesale advanced smd 0605 addressable rgb led with built-in ic made in China, welcome to get quotation from our factory. Also, 2 years warranty is available.

This ultra-compact 0605 SMD LED integrates a control IC directly into the package, removing the need for external driver components. With a small 1.6 × 1.2 mm footprint, it fits tight PCB layouts while delivering stable red, true green and blue output.

Single-wire data transmission and DIN-to-DOUT cascading simplify wiring in multi-pixel designs. Rated for –40 °C to +80 °C operation, it performs reliably in automotive interiors, backlight modules and miniature lighting products.

SMD 0605 addressable RGB chip led

0605 Miniature Package​ – 1.6 × 1.2 mm, ideal for high-density boards
Integrated Control IC​ – no external decoder or driver required
Wide Voltage Range​ – operates from 3.7 V to 5.5 V
Single-Wire Control​ – simple MCU interface, easy cascading
Stable Color Output​ – red, true green and blue chips with consistent brightness
120° Viewing Angle​ – wide, uniform light spread
Robust Operation​ – –40 °C to +80 °C, 2 kV HBM ESD protection
SMT Ready​ – supplied on 8 mm tape, 4500 pcs per 7″ reel

SMD 0605 Addressable RGB LED with Built-in IC Usage Tips
Signal Line: For long-distance pixel chains, add a 500 Ω resistor in series on DIN/DOUT lines to improve signal stability.
Soldering: Reflow soldering peak temperature ≤ 260 °C for ≤ 10 seconds. Hand soldering ≤ 300 °C for ≤ 3 seconds.
Storage: Store at 5–30 °C, ≤ 60% RH. Use within 168 hours after opening; if exposed to moisture, bake at 60 ±5 °C for 24 hours before assembly.

What Our Clients Ask

1. From a Wearable Device Developer – Shenzhen, China
"We're testing your SMD 0605 addressable RGB LED for a new smart badge project. The 1.6x1.2mm size is exactly what we needed. Quick question: for a run of 200 pixels on a rigid-flex board, do you still recommend the 500Ω series resistor on the data line, or can we skip it if the trace length is under 5cm?"

2. From a Mechanical Keyboard Brand – California, USA
"Samples arrived yesterday. These are the smallest addressable LEDs we've handled so far. We've got them running on a 3.3V MCU with a level shifter to 5V. Light uniformity looks great. We'll likely proceed with 50k pcs for our next production batch. Can you confirm the reel packing is vacuum-sealed with silica gel?"

Want to know more? Feel free to contact us now!
