Narrow Beam 1206 Red SMD LED

Standard 1206 footprint. Precision 30° narrow beam. Stop dealing with wide-angle light spill. This water-clear red SMD LED delivers focused, high-contrast indication for automotive dashboards, industrial controls, and compact backlighting.

Dongguan Zhiding Electronics Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of narrow beam 1206 red smd led in China, also supports customized service. If you're going to wholesale advanced narrow beam 1206 red smd led made in China, welcome to get quotation from our factory. Also, 2 years warranty is available.

Products Description

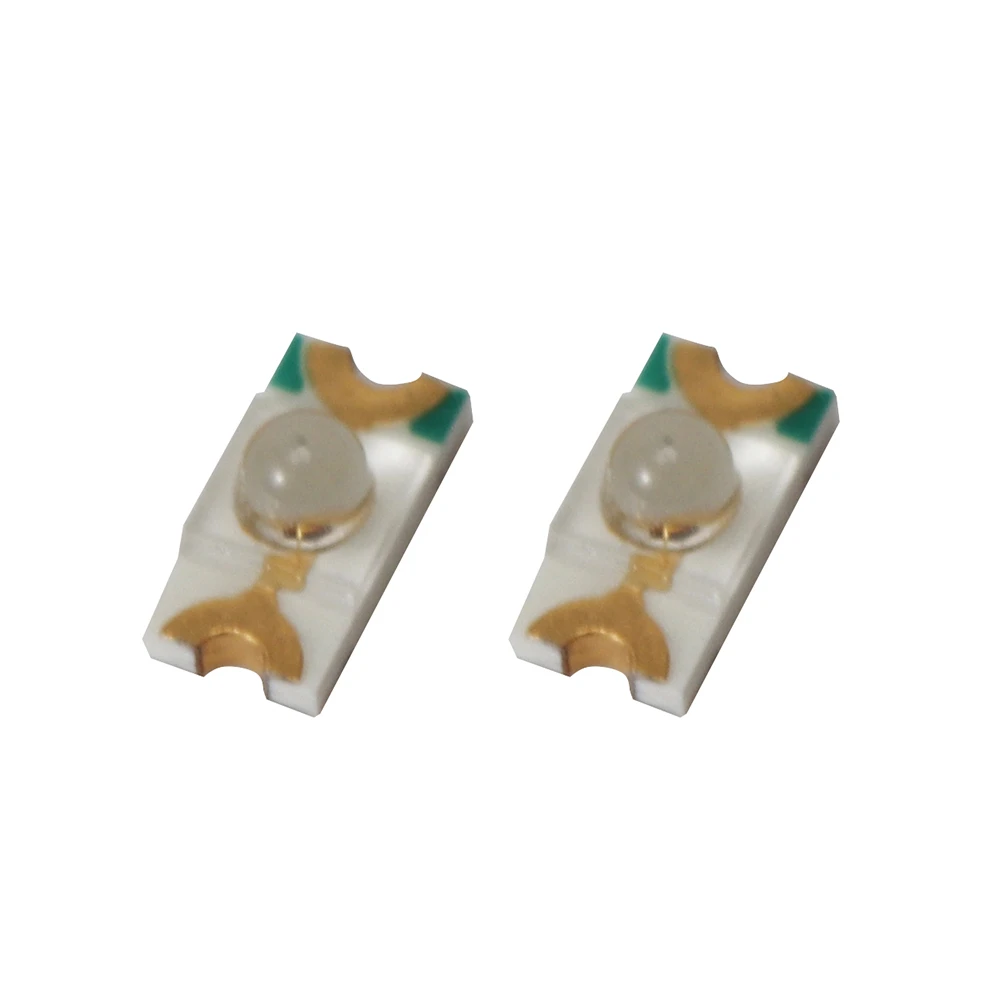

30° Narrow Beam Red SMD 1206 LED – High Brightness Indicator Light for Automotive & Industrial Applications

The AL-S1206SRC-VI-3DLP is a precision-engineered 1206 surface-mount red LED designed for applications where focused light output matters. Unlike standard wide-angle LEDs, this model features a water-clear dome lens and AlInGaP chip technology, delivering a stable 30° viewing angle with consistent brightness and pure red color (620–630nm).
Compact, reliable, and easy to integrate into automated SMT lines, it's built for automotive dashboards, control panel indicators, and compact backlighting systems.

product key technologies

Key Features
30° Narrow Beam Output – Reduces light spill, improves contrast, and eliminates the need for additional shielding.
High Brightness – 800–1600 mcd @ 20 mA ensures strong visibility even in daylight.
Wide Operating Temperature – Performs from –40°C to +85°C, suitable for harsh environments.
Pb-Free & RoHS Compliant – Fully compatible with lead-free reflow soldering.
Reliable SMT Integration – Supplied on 8 mm tape, 3000 pcs per reel, ready for pick-and-place machines.

Applications
Automotive: Dashboard backlights, brake and turn signal indicators.
Industrial Equipment: Control panel status lights, machine alerts.
Consumer Devices: Keypad lighting, standby indicators.
Display Systems: Compact LCD backlighting requiring precise light direction.

Parameter	Value
Part Number	AL-S1206SRC-VI-3DLP

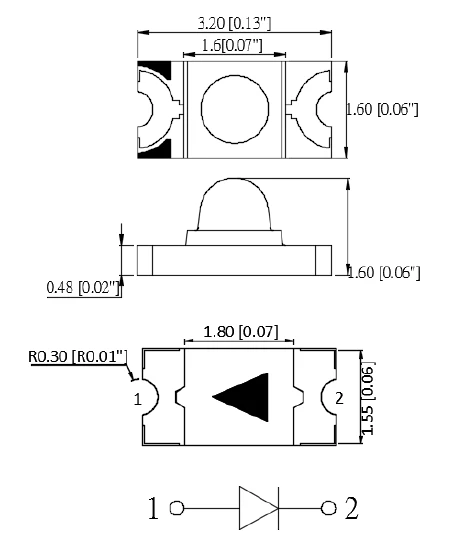

Package Size	1206 (3.2 × 1.6 mm)
Emitted Color	Pure Red
Dominant Wavelength	620–630 nm
Luminous Intensity	800–1600 mcd @ 20 mA
Forward Voltage	1.8–2.4 V
Viewing Angle	30°
Max Continuous Current	30 mA
Peak Pulse Current	100 mA (1/10 duty @ 1 kHz)
Operating Temp	–40°C to +85°C
Storage Temp	–40°C to +100°C

Ordering Info:
Packaging: 3000 pcs/reel, 8 mm embossed tape.
Samples: Available upon request for performance verification.
Custom Options: Alternative brightness bins, custom taping, and reel sizes supported for volume orders.
