SMD 5050 RGB For Strip Display Screen

Dongguan Zhiding Electronics Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of smd 5050 rgb for strip display screen in China, also supports customized service. If you're going to wholesale advanced smd 5050 rgb for strip display screen made in China, welcome to get quotation from our factory. Also, 2 years warranty is available.

Premium SMD 5050 RGB LEDs for High-Performance Strips & Displays

How to Choose Between Standard & Built-in IC 5050 RGB LEDs​
Selecting the right 5050 RGB solution depends entirely on your control system architecture. If your project uses a centralized controller with external drivers, our Standard 5050 RGB SMD​ offers the most cost-effective, high-brightness output. However, if your design requires individual pixel addressing-such as chasing effects, video mapping, or complex animations-our Built-in IC 5050 RGB LEDs​ (compatible with WS2812B/SK6812 protocols) eliminate the need for extra components, reducing board space and assembly costs. Both options support custom wavelength tuning and voltage matching to ensure seamless integration with your existing power supply design.

5050 RGB LED details display dimension:

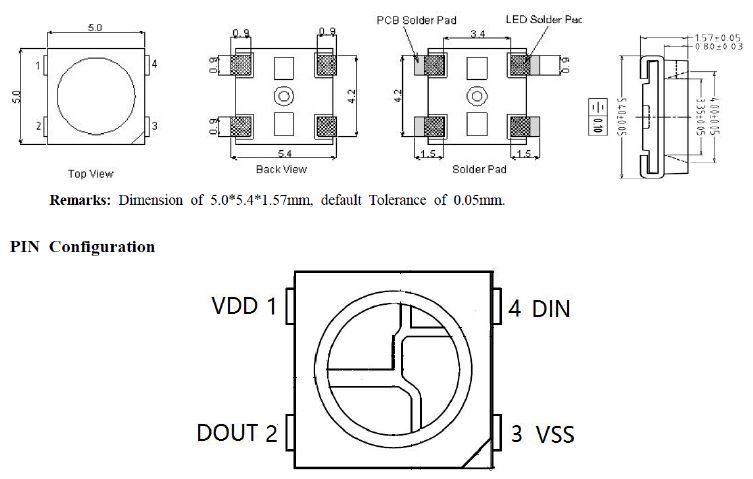

If you want 5050 RGB LED with inside IC WS2812, we also have, please check below led dimension details. If need more data sheet, please contact us freely!

Precision Binning & Thermal Management​
Unlike generic suppliers who mix large wavelength ranges, ZHIDINGLED implements strict 3-step binning​ for every 5050 RGB reel. We separate Red (618–628nm), Green (515–530nm), and Blue (465–475nm) into narrow chromaticity bins to prevent color shift when scaling from prototype to mass production. Furthermore, our encapsulation process uses high-purity silicone and copper lead frames to manage thermal buildup in high-density strip layouts (up to 144 LEDs/meter). This attention to detail ensures that brightness degradation stays below 3% after 3,000 hours of continuous operation-a critical factor for commercial signage and architectural installations.

Solving Common 5050 RGB Installation Issues​
Many engineers face unexpected issues when deploying 5050 RGB LEDs in the field. One common problem is voltage drop​ across long strip runs, which causes color fading at the far end. Our solution involves customizing the forward voltage (VF) range-typically 1.8–2.6V for Red and 2.8–3.6V for Green/Blue-to match your trace width and power injection points. Another challenge is signal interference​ in addressable systems; our built-in IC variants feature optimized signal reshaping circuits to maintain data integrity over long distances. Whether you are lighting a retail display, an automotive interior, or a smart home fixture, these optimizations prevent the flickering and dead pixels common with off-the-shelf LEDs.

Key Features
1. Smart IC Compatibility​ – Fully supports WS2812B, SK6812, and other addressable IC protocols for dynamic pixel control.
2. High Refresh Rate Display​ – Flicker-free performance for scrolling text, animations, and video walls.
3. Flex-Strip Optimized​ – Stress-resistant packaging for up to 144 LEDs/meter high-density flexible layouts.
4. Strict Color Binning​ – Narrow wavelength ranges (R:618–628nm, G:515–530nm, B:465–475nm) ensure batch-to-batch consistency.
5. Thermal Stability​ – Maintains brightness and color integrity during 24/7 operation.
6. Dual Reflow Endurance​ – Withstands 260°C peak soldering temperatures without damage.
7. Outdoor Ready Options​ – Available with conformal coating or silicone encapsulation for IP65–IP67 protection.
8. 256-Level Grayscale​ – Smooth dimming and gradient effects without color shift.
9. High-Density Design​ – Compact footprint prevents optical interference in tight layouts.
10. OEM Flexibility​ – Custom chip positions, voltage tuning, and fast sampling available.

5050 RGB LED Applications​
1. High-density RGB LED strips & neon flex lights
2. Indoor & outdoor full-color LED displays
3. Advertising signage & scrolling message boards
4. Stage lighting & architectural façade illumination
5. Automotive interior accent lighting
6. Industrial control panel indicators
7. Consumer electronics backlighting

Shipping:

1.FedEx/DHLUPSITNT for samples, Door-to-Door

2. By Air or by Sea for batch goods, for FCL; Airport Port receiving

3 Customers specifying freight forwarders or negotiable shipping methods

4.Delivery Time. 3-7 days for samples; 5-25 days for batch goods

ZHIDINGLED guarantees fast response within 12 hours and sample delivery within 3 working days. Backed by an 80Mpcs/month production capacity, we ensure stable supply for your strip and display projects worldwide. Contact us today to discuss customization options and volume pricing.
