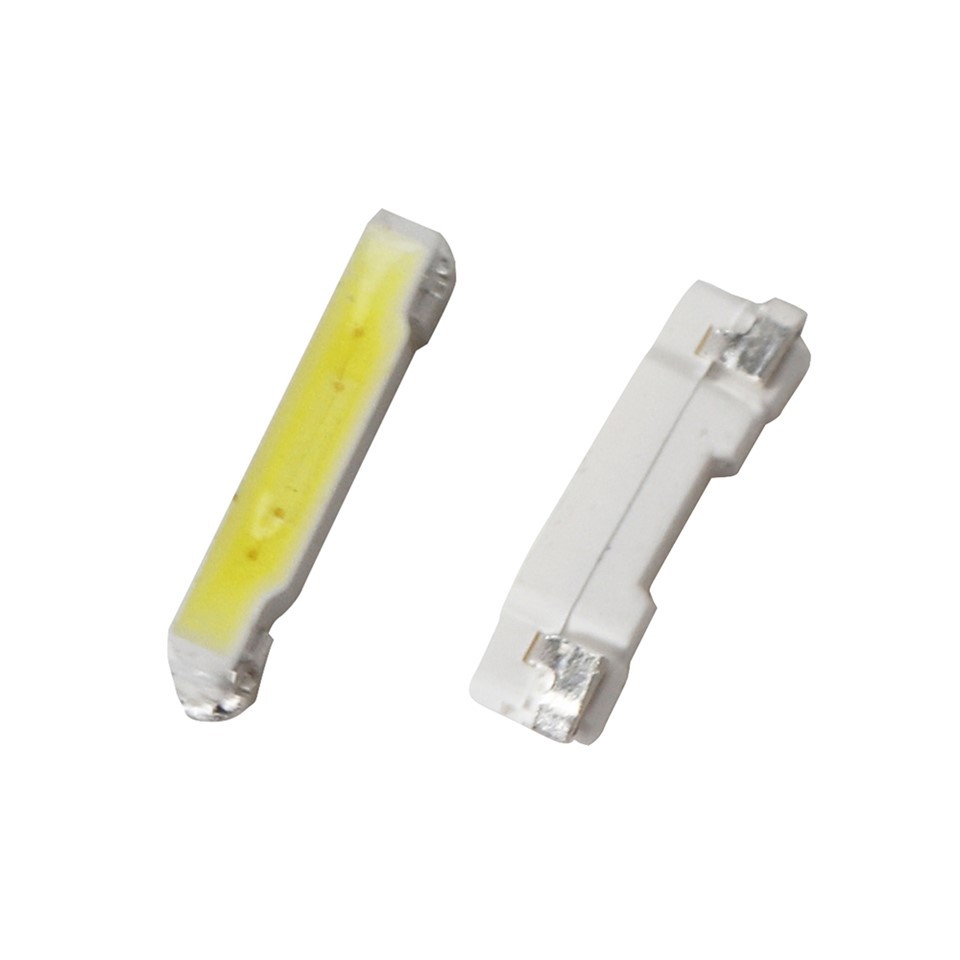

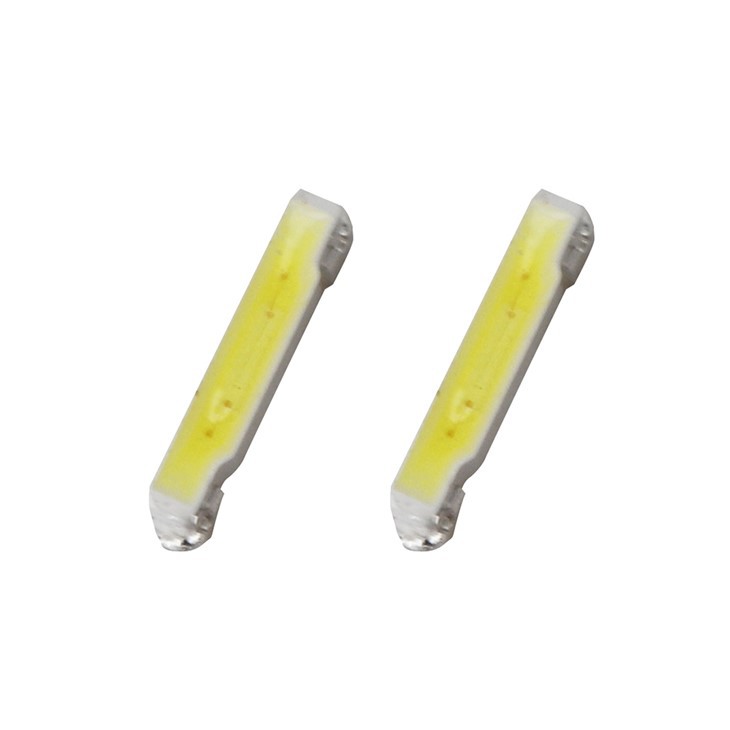

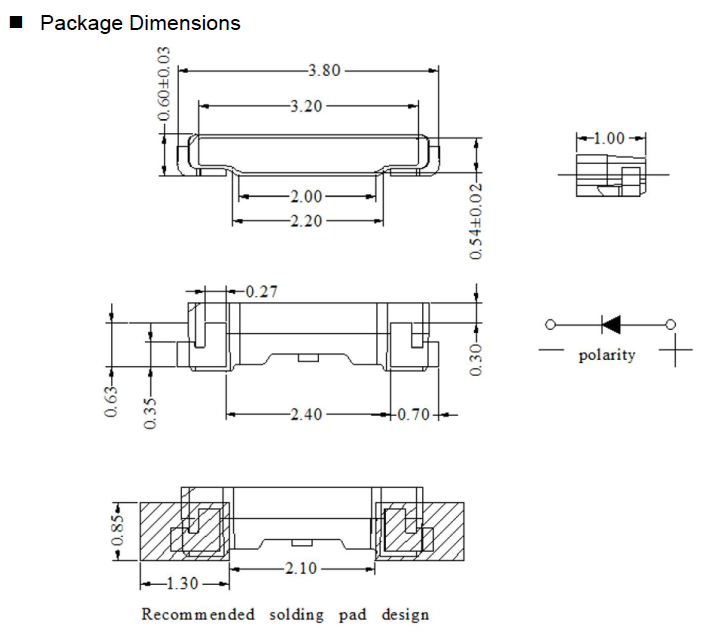

Side View SMD LED 3806 White High Brightness Surface Mount
Part Number: AL-S3806CWY-V8-10A1
Package: 5000pcs/reel
High-efficiency 3806 side-view SMD LED delivering stable white output, wide viewing angle, and industrial-grade reliability. Designed for SMT mass production with consistent optical performance.
Key Features
High Luminous Intensity – 2750–3750 mcd @20mA
Stable Chromaticity – InGaN chip with yellow diffused lens
Wide Operating Range – -40℃ to +80℃
ESD Robustness – 2000V HBM for safer handling
Process Compatibility – Infrared & vapor phase reflow supported
Flexible Customization – Single-color and color temperature variants available
|
Category |
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
|---|---|---|---|---|---|---|
|
Electrical / Optical |
Luminous Intensity |
Iv |
2750 |
3750 |
- |
mcd |
|
Forward Voltage |
VF |
2.8 |
- |
3.2 |
V |
|
|
Viewing Angle |
2θ₁/₂ |
- |
120 |
- |
deg |
|
|
Reverse Current |
IR |
- |
- |
5 |
μA |
|
|
Chromaticity X |
X |
- |
0.28 |
- |
- |
|
|
Chromaticity Y |
Y |
- |
0.27 |
- |
- |
|
|
Absolute Ratings |
Forward Current |
IF |
- |
- |
30 |
mA |
|
Peak Forward Current |
IFP |
- |
- |
60 |
mA |
|
|
Power Dissipation |
Pd |
- |
- |
100 |
mW |
|
|
ESD Rating (HBM) |
ESD |
- |
- |
2000 |
V |
|
|
Operating Temperature |
Topr |
-40 |
- |
+80 |
℃ |
|
|
Storage Temperature |
Tstg |
-40 |
- |
+85 |
℃ |
|
|
Product Info |
Chip Material |
- |
InGaN |
|||
|
Emitted Color |
- |
White |
||||
|
Lens Color |
- |
Yellow Diffused |
Procurement Information
Stable supply for volume orders
Full datasheet & test reports available
Free samples provided for evaluation
Custom single-color solutions supported
Engineering Notes:
Recommended soldering temperature: ≤260℃ within 10 seconds
Preheat: 140–160℃ within 2 minutes
Avoid organic solvents during cleaning
Store in 5–30℃, <60% RH; bake if exposed beyond 168 hours
